11” X 58” Table
-
Variable speed, 5HP, 3 Phase, 220/440V
-
NST#40 Spindle material SAE4115(SCM415)
full piece by hardened & ground
-
Turcite-B On XY ways, slideways & Gibs
-
Hardened & Ground X&Y Slideways and table
-
32mm Precision ground Ball screws on XY
-
Box way on Y, and column
-
Grinding on Ram & column slideways
-
Grinding on table T-slot
-
Hardened & ground on Quill
-
Leveling Screw & Plate on Base.
-
Strict Required Scraping with High Precise
Accuracy
-
Tool box & Tools
-
Rubber chip cover (front & rear)
-
Lifting motor for knee up-down travel
(optional)
-
Auto Lubrication included
-
Work light included
-
Hardware
limit/homing switches for XY axes (Optional)
|

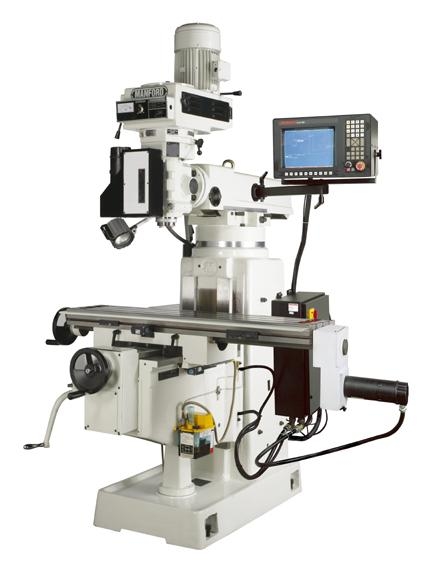

Note: picture shows
machine with Anilam 3300 control.
Other
controls are also available. |
|
Specification
|
|
TABLE |
|
|
Table size |
11” x 58” (279 x 1473mm) |
|
T slot of spindle ( Qty X Size ) |
3x ⅝” (3 x 16mm) |
|
Longitudinal
travel |
39.7” (1003mm) |
|
Cross travel |
16” (405mm) |
|
Travel of knee |
17” (432mm) |
|
Travel of Z axis (Quill): |
5” (127mm) |
|
Table to spindle
nose |
3.9” - 20.9”
(99-530mm) |
|
SPINDLE |
|
|
Spindle taper |
NST#40
(or CT-40) |
|
Spindle speed (RPM) - Variable
speed head |
(60Hz) 60-4300 |
|
Ram travel |
22” ( 560 mm) |
|
Over swivel on turret |
360º |
|
Quill feeds (mm/rpm) |
0.0015" ~ 0. 003" ~ 0.006" |
|
Swiveling angle
and head (R & L) |
+45º |
|
Head tilt (up & down) |
0° |
|
Spindle to column (E) |
6⅝” – 28¾”
(168mm-730mm) |
|
MOTOR |
|
|
Spindle motor |
5 HP,3
Phase, 220/440V |
|
MACHINE SIZE |
|
|
Overall height |
93.5” (2375mm) |
|
Overall depth |
72.9” (1850mm) |
|
Overall width |
75” (1900mm) |
|
Net weight |
3960 lbs. (1800kgs) |
|
 Standard Accessory
|
CNC Control System (Adaptable) |
|
|
|
|
|
XY
precision ground ball screws |
Anilam |
|
Auto Lubrication Pump |
Mitsubishi |
|
Quartz work light |
Fanuc |
|
Rubber chip
cover( front & rear ) |
|
|
Tool Box
with Tools |
|
|
Optional Accessory
|
|
EVS Head, 5HP inverter motor with Yaskawa Driver 60-5000rpm |
|
Lifting motor |
|
Align AL-500 power feed for Z |
|
Electrical box and control pane |
|
Hardware limit/homing switches for XY axes |
|
Digital readout system |
|
Coolant system (1/8 HP,3PH,220V) |
|
Coolant tray (Base) |
|
6” Angle-fixed milling vise with swivel base |
|
Clamping kit (52 pcs) |
|
|
|
|
|
|
|
All
Specifications And Designs Are Subject To Change Without Notice. |
|
|
|
