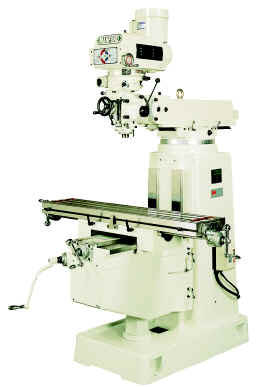

SP-500VS



 Price
Blog

  Feature




1 10" × 54" Table , long saddle & box way on Y
2 Hardened & Ground Table with Ground T-Slot
3 3HP Spindle Motor, variable speed
4 R8 (NST#30) Spindle Material Scm415(SAE4115)Hardened & Ground.
5 Bearing support to the motor shaft
6 Unique rigid design on spindle auto-feed, spline design on the pinion & clutch support
7 Turcite-B On X&Y Ways, Slideways and Gibs.
8 Hardened & Ground X&Y Slideways.
9 Electroless Nickel-Phosphorus Process On X&Y leadscrew with hardness 35 HRC.
10 Leadscrew nut made from PBC2, phosphor bronze
11 Highly Improved Vari-Speed Head
12 1-1/2”(38mm) Diameter Lifting Screw.
13 Leveling Screw & Plate On Base.
14 Rubber chip cover (front & rear )
15 Tool box & Tools
16. Machine made in Taiwan complete
.










  Specification




      TABLE
　　Table  size 10" x 54"(250 X 1370 mm)
　　T slot of spindle ( Qty  X  Size ) 3 x 0.629" (3 X 16 mm)
       Longitudinal travel ( W/O Power Feed ) 34" (870 mm )
                                  ( with Power Feed) 30.5" (775 mm)
       Cross travel  16” (410mm)
       Travel of knee 17” (450mm)
       Quill travel  5” (127mm)
       Spindle to table nose (D) 3.3” - 21” (85-535mm)
      SPINDLE
　　Spindle taper R8 (or NST # 30)
　　Spindle speed (RPM) - Variable speed head 50 Hz LOW : 50 ~ 420 HIGH : 420 - 3800
60 Hz LOW : 60 ~ 500 HIGH : 500 ~ 4500
　　Quill travel 5”  (127 mm)
　　Ram travel 22” (560 mm)
　　Over swivel on turret 360º
　　Quill feeds  (mm/rpm) 0.0015" ~ 0. 003" ~ 0.006"
　　Head swivel (R & L)  +45º
　　Head tilt (up & down) +45º
　　Spindle to column (E) 6.6”-28.7” (168-730mm)
      MOTOR
　　Spindle motor  3 HP
      MACHINE SIZE
　　Overall height  90” (2262mm)
　　Overall depth 83.5” (2120mm)
　　Overall width 72.4” (1840mm)
　　Net weight

3360 lbs. (1500 Kgs)







  Standard Accessory
       Rubber chip cover( front & rear )
       Tool Box with Tools

Optional Accessory
      EVS Head, 3HP inverter motor with Yaskawa Driver 60-5000rpm
      Align AL-500 Power feed for X
      Servo model 150 Power Feed X
      Servo model 150 Power Feed Y
      Align AL-500 Power feed for Y OR Z
      Servo power feed (Z axis) Model 140
      Servo Turbo power feed on any axis
      Digital Readout
      Auto Lubrication Pump
      Coolant system (1/8 HP,3PH,220V )
      Coolant tray (Base)
      Quartz work light
      Riser block 4"/6"/8"
      R8 Collet set (7pcs/set)
      6” Angle-fixed milling vise with swivel base
      Clamping kit (52 pcs)




All Specifications And Designs Are Subject To Change Without Notice.
