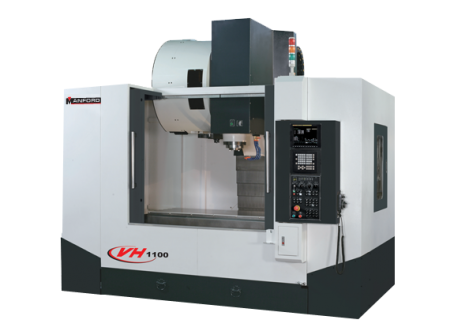

VH-1100
|
Price
Blog |
|
Features
|
| 1 |
BT40 / CAT40 / DIN40 spindle (Φ150mm). 100% balanced with low vibration
performs high precision machining. Air blow function is standard to keep chips
from falling into Spindle. |
| 2 |
Optional spindle speed: 10,000 / 12,000 / 15,000 / 24,000 RPM |
| 3 |
Hardened & Ground C3 Double-Nut ballscrews (Φ40mm) are pre-tensioned to minimize
backlash, provide high precision movement, and reduce heat deformation on all
axes. |
| 4 |
Positioning accuracy: ± 0.005mm / 300mm Repeating accuracy: ± 0.003mm / 300mm |
| 5 |
Four solid ways on base provides precise rigidty under heavy cutting conditions |
|
|
|
|
 |
| |
|
Specification
|
|
TRAVEL |
|
|
X/Y/Z travel |
43.3" / 27.6" / 24" |
|
Spindle nose to table surfacce |
5.1" ~ 33.1" |
|
Spindle center to column surface |
28.7" |
|
TABLE |
|
|
Table size |
51" x 25.6" |
|
T-Slot (Size / Qty / Dist.) |
0.7" x 5 x 3.9" |
|
Max. table load (Kgs) |
2200 Lbs |
|
SPINDLE |
|
|
Speed |
8,000 RPM(10,000 ~ 15,000 RPM) |
|
Taper |
BT40 / DIN40 / CAT40 |
|
Transmission |
Belt |
|
FEED RATE |
|
|
Rapid feed rate of XYZ |
945 / 945 / 628 inch/min |
|
Cutting feed rate |
1 ~ 394 inch/min. |
|
AUTOMATIC TOOL CHANGER/b> |
|
|
Tool storage capacity |
Armless 20 (Arm 24 / Chain 32) |
|
Max. tool diameter |
Full: 3.9" Next empty: 5.9" |
|
Max. tool length |
11.8" |
|
Max. tool weight |
132 Lbs |
|
CNC CONTROL & MOTOR |
|
|
CNC control |
Mitsubishi(FANUC / SIEMENS / HEIDENHAIN / FAGOR) |
|
Spindle motor |
7.5 / 11 Kw (15 HP) |
|
Axis motors |
3.5 Kw |
|
COOLANT |
|
|
Coolant pump |
0.75 HP |
|
Coolant tank capacity |
270 L |
|
AIR & POWER SUPPLY |
|
|
Air source |
6 Kg / cm2 |
|
Power supply |
20 KVA |
|
MACHINE SIZE |
|
|
Dimension |
118.1" x 111.2" x 119.2" |
|
Net weight |
~
15400 Kgs |
|
Gross weight |
~ 15840 Kgs |
|
Standard Accessory
|
|
Rigid tapping |
|
RS-232 interface |
|
Auto power off |
|
Auto lubrication |
|
Halogen work light |
|
End of program light |
|
Heat exchanger for electrical
cabinet |
|
Full guarding / Remote handwheel |
|
Leveling bolts and plate |
|
Tools and box |
|
Operation manual |
|
Spindle oil cooler 6000 BUT |
|
|
| |
|
Optional Accessory
|
|
Spindle oil cooler |
|
High pressure water scour for chip removal |
|
Air conditioner for electrical box |
|
Coolant through spindel center |
|
Screw type chip conveyor |
|
Oil skimmer |
|
Chain type chip conveyor |
|
Oil through tool holder |
|
Scraper type chip conveyor |
|
Oil mist lubrication pump |
|
4th axis |
|
CE electrical box |
|
DRO |
|
Transformer |
| |
| |
|
All
Specifications And Designs Are Subject To Change Without Notice. |
|
|
|
|
