CB-180



 Price
Blog

  Feature



  • 10” X 54” Tablesp-150vs with long saddle to provide rigidity

  • 5HP Spindle Inverter Motor, NST#40 Spindle, 220V/3/60Hz standard

  • 5HP Yaskawa driver for frequency Inverter system

  • Spindle material SCM415 full hardened & ground

  • Quill dia. 4.13”, material S45C(SAE1045) with Frequency heat treatment & chrome plated, precision ground

  • Turcite-B On XYZ axes and gibs

  • Hardened & Ground on X&Y&Z Slideways & table

  • Rigid box ways on cross & column

  • XYZ precision ground double nut & preload ballscrews

  • Handle wheel on XY.

  • Licensed Meehanite casting with anneal & stress relieving treatment

  • Leveling Screw & Plate On Base.

  • Tool box & Tools

  • Telescopic steel cover on front

  • Rubber chip cover ( column & rear )

  • Coolant System & coolant tray

  • Quartz work light & Auto lubrication

  • Column splash guard ( 2 pcs )

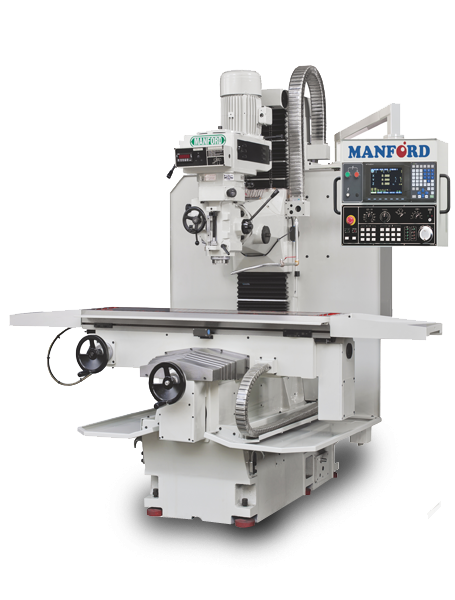

                   Note: picture shows machine with Anilam 3300 control.

                              Other controls are also available.





  Specification




      TABLE
　　Table  size 10” x 54” (250 x 1370mm)
       Longitudinal travel 32.7” (830mm)
       Cross travel  19.7” (500mm)
       Vertical travel 18” (450mm)
       Spindle to table nose (D) 2.6”-23.6”(67-600mm)
      SPINDLE
　　Spindle taper NST#40
　   Spindle speed (RPM) 50-4500 inverter system
　　Stroke of quill 5” (127mm)
　　Quill feeds  (mm/rpm) 0.0015” - 0.003” - 0.006”
　　Swiveling angel and Head swivel (R & L)  +45º
　　Spindle center to column (E) 20”(500mm)
       XYZ axes feed rate (per min)

1-118 inch/min(depends on CNC system)
       Rapid traverse X,Y,Z axes(per min)  197 inch/min(depends on CNC system)
      MOTOR
       Spindle motor  5HP inverter motor
       Drive on XYZ:          1HP(depends on CNC system)
　    Coolant pump: 1/8HP
      MACHINE SIZE
　　Overall height  101.6” (2580mm)
　　Overall depth 86-5/8” (2200mm)
　　Overall width 74-3/4” (1900mm)
　　Net weight

4620 lbs. (2100 Kgs)







  Standard Accessory
      EVS head,5HP inverter motor with Yaskawa driver Hardware limited switch for 3 axes
      XYZ precision ground ballscrews Column splash guard (2 pcs)
      Handwheel on XYZ Coolant system & coolant tray
      Telescopic steel chip cover(front) Quartz work light & auto lubrication
      Rubber chip cover(front & rear) Tool box with tools

  CNC Control System
       Anilam
       Mitsubishi
       Fanuc

Optional Accessory
      15” x 58” Table
      Table guarding
      Transformer for 380V power to 220V/110V for inverter & CNC
      Digital Readout System
      Air Power Drawbar
      6” Angle-fixed milling vise with swivel base
      Clamping kit (52 pcs)




All Specifications And Designs Are Subject To Change Without Notice.
